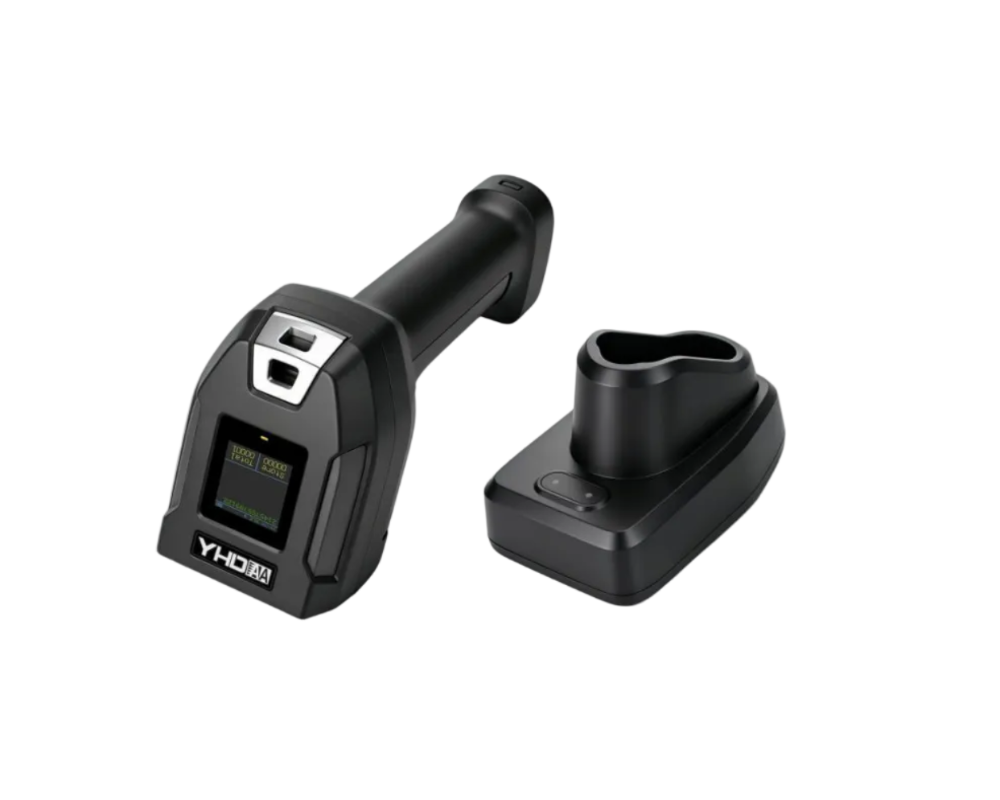

Industrial 1D/2D Wireless Barcode Scanner with Colour LCD & Charging Base

Built for warehouses, workshops, and busy shop floors, this rugged handheld scanner reads almost any code, from standard barcodes and QR codes to codes engraved directly into metal. Connect wirelessly up to 100m away, check every scan on its colour screen, and keep working for up to 40 hours on a single charge.

Key Features

• Reads almost any code: A high-resolution 1280×1024 industrial CMOS sensor scanning at 120 frames per second accurately decodes all common 1D and 2D barcodes, plus hard-to-read DPM, metal, dot-matrix, engraved, screen-printed, silver paper, and reflective surface codes.
• 3-in-1 connection with long range: Use 2.4G wireless (up to 100m), Bluetooth (up to 50m), or a USB cable.
• Works with your devices: Compatible with Windows, Mac, Linux, iOS, and Android. Supports HID, SPP, and BLE modes.
• Colour LCD screen: See each barcode's content, type, count, and length as you scan, along with live battery level and connection status.
• Built for tough environments: Rugged housing made from 70% soft rubber with durable ABS, PC, and TPU. IP54 dust and water resistant, withstands 3m drops onto hard surfaces, and is anti-slip and sweat-proof.
• Scans in any light: Works reliably from dim warehouses to full sunlight.
• All-day battery, swappable in seconds: A 3200mAh battery delivers up to 40 hours of working time. When it runs low, unlock the case and push-pull to swap in a fresh battery.
• Stores up to 100,000 scans: Out of range? Keep scanning in offline mode and upload the data later.
• Charging base included: The base charges the scanner and also handles data transmission.
• Customisable to your workflow: Add or hide prefixes and suffixes, add timestamps, adjust vibration and buzzer settings, insert keyboard keys, and more.
• Flexible scanning modes: Choose manual trigger, continuous scan, or auto-sense, which scans automatically when a code is presented.

Ideal For

Warehouses and logistics, inventory and stocktakes, retail and POS, manufacturing and parts tracking, and courier and dispatch operations.

Specifications

Model	YHD-8700DB-BS
Sensor	1280×1024 CMOS
Scan speed	120 FPS
Resolution	3mil
Print contrast	≥20%
Connection	2.4G wireless / Bluetooth / USB cable
Range	2.4G up to 100m, Bluetooth up to 50m, USB cable 1.5m
Bluetooth modes	HID, SPP, BLE
Compatibility	Windows, Mac, Linux, iOS, Android
Storage	Up to 100,000 barcodes
Display	Colour LCD
Indicators	Buzzer and LED
Light source	Green LED aimer, white LED illumination
Trigger modes	Manual, continuous, auto-sense
Scanning angle	360° rotation, ±65° tilt, ±65° skew
Field of view	44° horizontal, 33° vertical
Ambient light	Up to 100,000 lux
Battery	3.7V 3200mAh, replaceable
Working time	Up to 40 hours
Charging time	6–7 hours
Button life	8,000,000 presses
Drop rating	3m
Protection rating	IP54
Operating temperature	-20°C to +60°C
Storage temperature	-40°C to +70°C
Operating humidity	5%–95%
Material	ABS + PC + TPU rubber
Certifications	CE, FCC, RoHS
Colour	Black

Scanning Distance

5mil Code 39	45–170mm
13mil EAN-13	40–410mm
20mil QR Code	25–320mm
10mil Data Matrix	45–145mm
6.67mil PDF417	30–175mm

Supported Codes

1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar (Omnidirectional, Limited, Expanded), China Post, Korea Post

2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec, MaxiCode, Han Xin, Codablock A, Codablock F, GS1 Composite

DPM: metal, dot-matrix, and engraved codes

What's in the Box

• 1 × Barcode scanner
• 1 × Charging base
• 1 × USB cable
• 1 × User manual
